RAM Horizontal Swing Arm Mount for Lowrance Elite-5 Series (RAM-109H-2B-B-LO11)

  • $1,198.00 Ex. Tax: $1,198.00


RAM-109H-2B-B-LO11

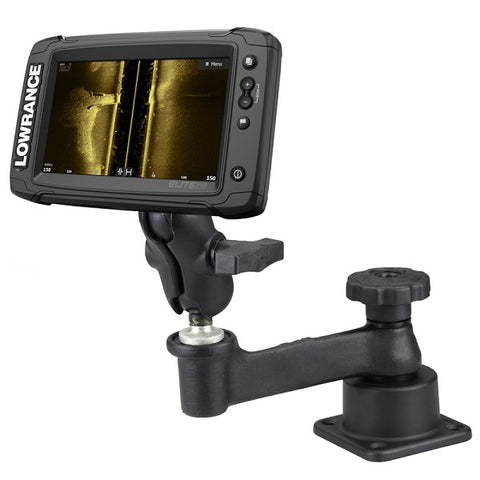

The RAM-109H-2B-B-LO11 consists of a 6" long STRAIGHT swing arm mounted on a horizontal surface mounting base. At the free end of the mount swing arm is a C size 1.5" ball.The connection between the swing arm and the base is a bolt pivot point, and the round plate and arm connection is the RAM ball and socket system. The bolt pivoting point allows a complete 360-degree rotation and the ball and socket system allows a 180-degree vertical pivot with a 360-degree rotation. Included is a short length C size double socket arm, also included is the RAM Lowrance adapter base includes a 1.5" diameter rubber ball and inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds.

Features & Specs:

  • Socket-to-Socket Length: 3.56"
  • Hole Pattern: 2.5" x 2.5"
  • Plate Size: 3.47" x 3.47"
  • Ball/Socket Size: C Size (1.5")
  • Weight Capacity: Standard Use: 4 lbs, Heavy-Duty Use: 3 lbs
  • Materials: Marine-grade aluminum
  • Packaging Type: Poly Bag
  • Additional Information: This product is not compatible with the standard Lowrance Elite-7.
  • Components: RAM-202U-LO11, RAM-201U-B

Package Content:

  • Contains 1 x RAM Horizontal Swing Arm Mount for Lowrance Elite-5 Series (RAM-109H-2B-B-LO11)
