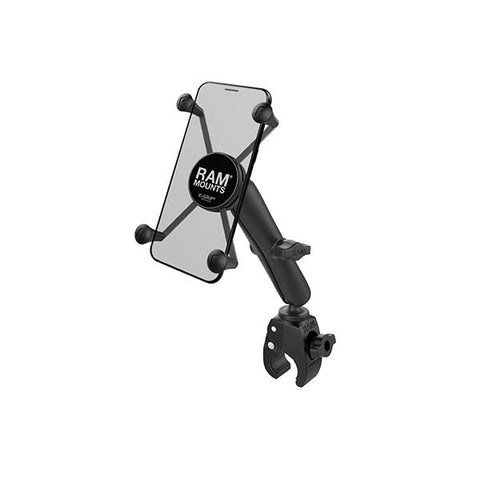

RAM® X-Grip® Large Phone Mount with RAM® Tough-Claw™ Small Clamp Base (RAM-B-400-C-UN10U)
RAM-B-400-C-UN10U
The RAM-B-400-C-UN10U consists of the Tough-Claw™ rail clamp base, LONG length double socket arm and universal spring loaded X-Grip® cradle for large phones and phablets. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your phone or phablet. Included are easy access grip knobs for quick insertion and release of your handheld device.
The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.5" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your collection of mounting options. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
The Tough-Claw™ rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 0.625" - 1.5" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM® Tough-Claw™ will soon become another essential RAM® component in your collection of mounting options. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.
Compatible Devices
:
Specs & Features
- Apple: iPhone 6s Plus, iPhone 7 Plus, iPhone 8 Plus, iPhone Xs Max, iPhone 11 Pro Max
- Blackberry: Evolve X
- Garmin: Drive 50, Drive 51 LM, Drive 52, Drive 61 LM, DriveSmart 51 LMT-S, DriveSmart 61 LMT-S, DriveTrack 71, Nuvi 2788LM, RV 660LMT, RV 770 LMT-S
- Google: Pixel 2 XL, Pixel 3 XL, Pixel 3a XL
- HTC: Bolt, U Ultra
- Huawei: Mate 20 X
- LG: Fiesta 2 LTE, Fiesta LTE, G8S ThinQ, Harmony, Stylo 2 V, Stylo 3, Stylo 3 Plus Titan, Stylo 4, V20, V50 ThinQ, X charge, X venture
- Magellan: TR5, TR7
- Motorola: moto e4 plus, moto g4, moto z2, moto z2 play, moto z3
- Rand: McNally Road Explorer 5, McNally TND 540
- Razer: Phone 2
- Samsung: Galaxy A7, Galaxy A7 (2017), Galaxy A7 (2018), Galaxy A8, Galaxy A8 (2016), Galaxy A9 (2016), Galaxy A9 Pro (2016), Galaxy A9 (2018), Galaxy A70, Galaxy A80, Galaxy A90 5G, Galaxy C7, Galaxy C7 Pro, Galaxy C9 Pro, Galaxy E7, Galaxy Grand Neo Plus, Galaxy J7, Galaxy J7 Max, Galaxy J7 V, Galaxy Note 5, Galaxy Note 10 Plus, Galaxy On7, Galaxy S10 5G, Galaxy S8, Galaxy S8 Active
- Sony: Xperia C4, Xperia L2, Xperia XA Ultra, Xperia XA1 Ultra, Xperia XA2 Ultra, Xperia XZ Premium
Specs & Features
- Hardware Included: (1) Optional Tether, (1) Glue Tube for Rubber Caps
- Holder Dimensions: Width Range: 1.75" - 4.5", Depth Range: .875" max
- Clamp Range: .625" - 1.5" diameter, 0" - 1.14" flat surfaces
- Socket-to-Socket Length: 5.31"
- Ball/Socket Size: B Size (1")
- Weight Capacity: 2 lbs
- Weight: 1 lbs.
- Materials: Powder Coated Marine Grade Aluminum, Marine Grade Stainless Steel Components & High Strength Composite
- Note: The "U" in the part number reflects product packaged in poly bag. RAM highly recommends using the provided Tether for all open cockpit applications while using this product.
- 1 x RAP-B-400U
- 1 x RAM-B-201U-C
- 1 x RAM-HOL-UN10BU
