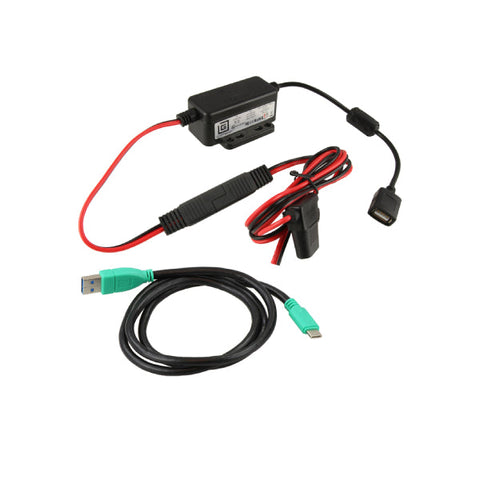

GDS™ Modular 10-30V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V7B1U)
RAM-GDS-CHARGE-USBC-V7B1U
The GDS® Modular Hardwire Charger with USB Type-C cable is the ideal solution for providing power to any GDS® vehicle solution. With the quick disconnect feature easily connect any USB Type A charging cable. When it comes time to upgrade avoid any rewiring by simply unplugging the power connector and attaching the new charger components. Compatible with any 5V device with a current requirement of 2.5A or less.
Features
- Input Voltage: 10V - 30V DC
- Output Voltage: 5-9VDC
- Output Current: 2.5A max
- Input Connector: USB Type-C
- Input Cable Length: 1.2 Meters including 2 Pole Flat Marine Connector
- Output Cable Length: .2 Meter
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Compliance: Over Voltage Protection Short Circuit Protection Reverse Polarity Protection RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture Resistant
- Certifications: CE Certification e-Mark Certification RCM Certification FCC Certification
- Weight: 0.43 lbs.
- Warranty Status: 3 year warranty Package Content
- 1 x GDS® Modular 10-30V Hardwire Charger with Type-C Cable (RAM-GDS-CHARGE-USBC-V7B1U)
